IHURMO mobile self-propelled lifts
Description

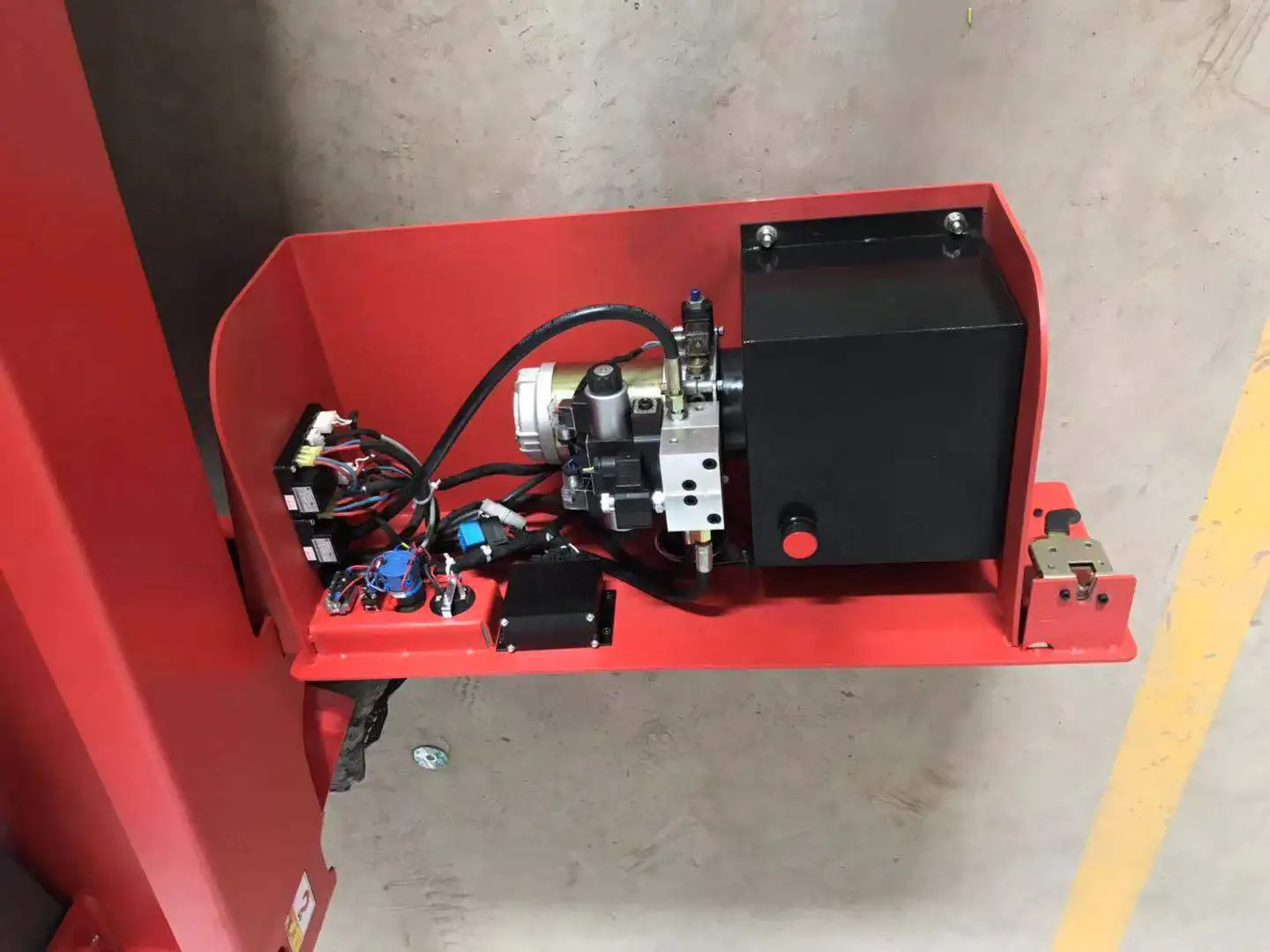

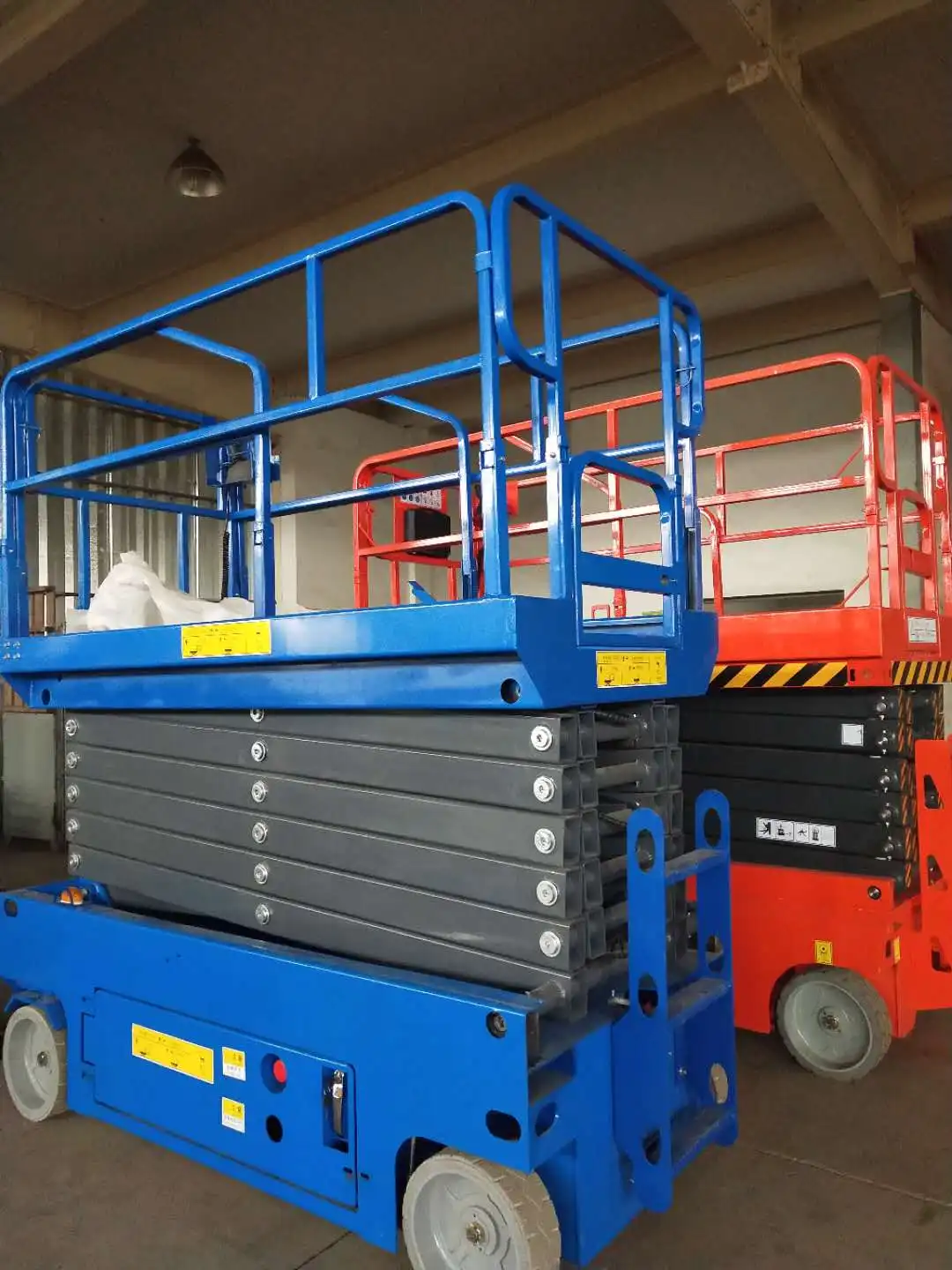

IHURMO ASE type scissors lift consists of elevating platform, scissors lifting arm, lifting oil cylinder, hydraulic control system, under frame and running system.
| IHURMO | ||||
| Model | ASE0608D | ASE0810D | ASE1012D | ASE1214D |
| Working height, m | 8 | 10 | 12 | 14 |
| Platform height, m | 6 | 8 | 10 | 12 |
| Workload, kg | 320 | 320 | 320 | 320 |
| Platform size, m (LxW) | 1.9×0.9 | 1.9×1.0 | 2.29×1.13 | 2.29×1.13 |
| Overall dimensions, m (LxWxH) | 2.06×0.9×1.68 | 2.06×1.0x1.8 | 2.43×1.15×1.93 | 2.43×1.15×2.05 |
Safety regulations for operation
a) Personnel on the inclined working platform are strictly prohibited to have all motions with transverse thrust or traction force;
b) Inclination and declination speed of platform is strictly prohibited to adjust on basis of installation and debugging;
c) Bearing weight of cargoes is not allowed to exceed rated bearing weight ;
d) People are strictly prohibited to stay below the platform during elevation;
e) Guarantee safety support protection below the platform during repair so that people can repair below the platform;
f) Overload due to increased pressure of hydraulic system is strictly prohibited;
g) It is not allowed to detach or modify parts randomly.
